| Model |
Description |
Specifications |
| HWP-HR1053 |
First Stage High Pressure Gas Regulator (MN) |
- Inlet: 1/2" FNPT, for incoming pressure 400 psi (max)
- Outlet: 1/2" FNPT, for outlet pressure 3-30 psi
|
| ACC-LV4403TR4 |
First Stage High Pressure Gas Regulator |
- Inlet: 1/2" FNPT, for incoming pressure 400 psi (max)
- Outlet: 1/2" FNPT, factory set outlet pressure 10psi
- Max flow from outlet 1,000 CFH (1,000,000 BTU/hr-NG; 2,5000,000 BTU/hr-LP)
|
| ACC-40SV06 |
Second Stage High Pressure Gas Regulator (1/4" orifice) |
- Inlet: 3/4" FNPT, for incoming pressure 60psi (max)
- Outlet: 1" FNPT, for outlet pressure 0.5 psi (14" w.c.) (max)
- Recommended for: VG400, VG175, S405
|

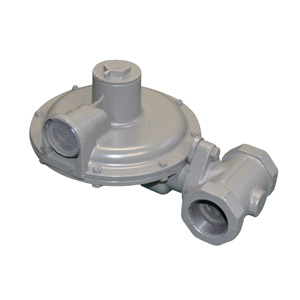

| ACC-11SV08 |
Second Stage High Pressure Gas Regulator (1/2" orifice) |
- Inlet: 1.25" FNPT, for incoming pressure 10 psi (max)
- Min pressure: 3 psi for 1,000,000 BTU (nat. gas)
- Min pressure: 7 psi for 1,500,000 BTU (nat. gas)
- Outlet: 1.25" FNPT, for outlet pressure 0.5 psi (14" w.c.) (max)
- Recommended for: VG500, VG700, VG1000, S1505
|
| ACC-20SV08 |
High Pressure Natural Gas Regulator |
- Inlet: 2" FNPT, for incoming pressure 60 psi (max)
- Outlet: 2" FNPT, for outlet pressure 0.5 psi (14" w.c.) (max)
- 5/8" x 2/4" orifice with black spring
|
